All-Electric Injection Molding Machine 450 Ton

All-Electric Injection Molding Machine- Walmo RE 450 Ton. Production Standards of the Future: High Speed, Maximum Precision.

Offered with the assurance of ELVER, the Real Series promises ultra-high productivity thanks to its high-speed processor and real-time “Fieldbus” system. Pushing the boundaries of motion precision, this series integrates all the requirements of the digitalized industry into a single platform.

Stability

Key Advantages

Exceptional Stability

With advanced motion control technology and precision servo systems, we reduce the margin of error in production to near-zero:

Precision: 0.01 mm injection resolution and a weight offset of less than 0.01 g.
Control: Swiss-made Loadcells and optimized pressure-cut-off algorithms.
Hardware: Reinforced mechanical structure combined with premium electrical and pneumatic components offers sustainable production quality.

Economic

Maximum Economic Efficiency

Radically reduce your operating costs with advanced intelligent servo drives and a low-loss mechanical structure:

Energy Savings: Power consumption drops as low as 0.3 kWh/kg thanks to oil-free and direct full-servo motor drives.
Material Savings: Provides over 6% savings in product weight compared to traditional hydraulic machines.

Production

Superior Production Speed

The system design, optimized for short cycle times, turns every second into profit:

Parallel Movements: Minimizes cycle time through simultaneous movement capabilities and ejector operation during mold opening.
Flexibility: Full compliance with Chinese and European (EUROMAP) mold standards, wide tie-bar spacing, and long ejector strokes save time during setup.

Long Life

Long Lifespan and Intelligent Protection

Intelligent security systems designed to protect your investment:

Mold Protection: Minimizes wear and the risk of mold damage through an intelligent mold protection system and closed-loop torque control.
Durability: Closed-loop trajectory movements that reduce mechanical losses and an ultra-long-life capacitive touchscreen.

Clean Room

Eco-Friendly and Clean Production (Clean Room Compatibility)

Completely eliminates hydraulic oil contamination thanks to its full servo-motor-driven structure:

Oil-Free Operation: Provides a pristine working environment using Japanese-origin ball screws and linear guides.
Professional Lubrication: Flawless cleanliness and performance with industry-standard professional Lube lubrication systems.

Innovation

The Hub of Innovation: ELVER R&D

We integrate ever-evolving information technologies into production processes. With our high R&D investments and rich technical reserves, we meet next-generation molding requirements with the most modern solutions.

“With the Real Series, you are not just buying a machine; you are investing in a future focused on efficiency and precision.”

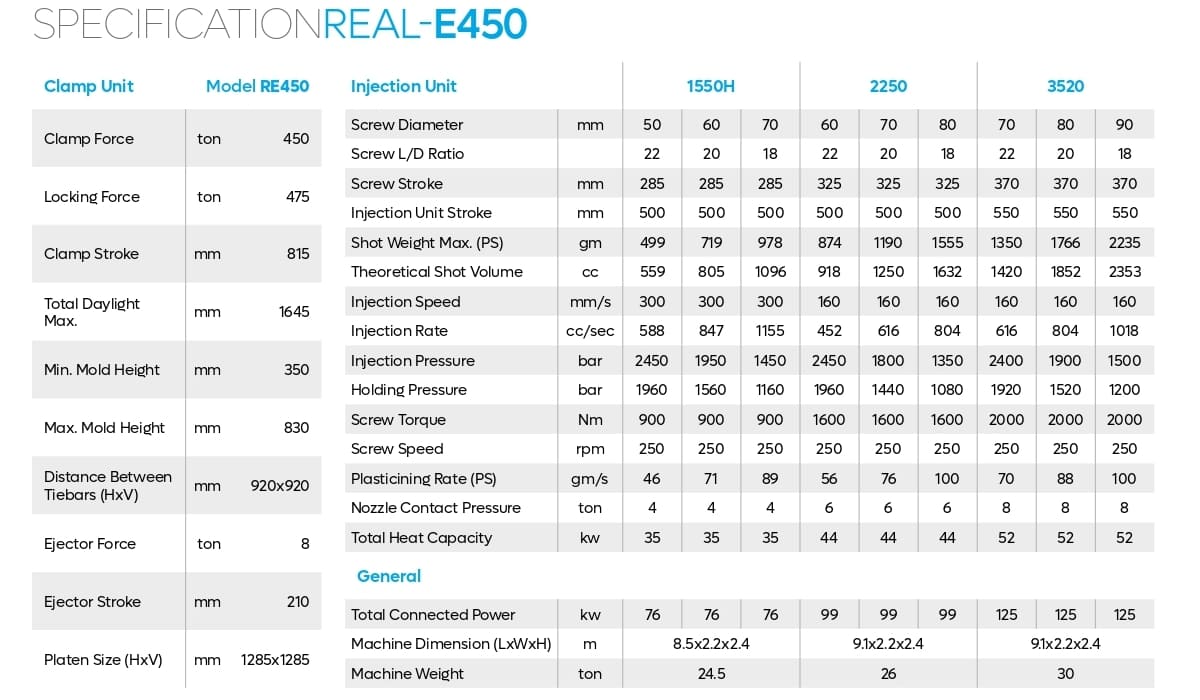

Technical Specifications

Technical Specifications: 450 Ton Electric Injection Molding Machine (RE 450)
											Clamp Unit	RE 450	Injection unit	1550 H	2250 H
											Clamp Unit	RE 450	Injection unit	1550 H	2250 H
Clamp force	ton	450	Screw diameter	mm	50	60	70	60	70	80
Clamp force	ton	450	Screw L/D ratio		22	20	18	22	24	18
Locking Force	ton	475	Screw stroke	mm	285	285	285	325	325	325
Locking Force	ton	475	Injection unit stroke	mm	500	500	500	500	500	500
Clamp stroke	mm	815	Shot weight Max. (PS)	gm	499	719	978	874	1.190	1.555
Clamp stroke	mm	815	Theoretical shot volume	cc	559	805	1.096	918	1.250	1.632
Total daylight max	mm	1.645	Injection speed	mm/s	300	300	300	160	160	160
Total daylight max	mm	1.645	Injection rate	cc/s	588	847	1.155	452	616	804
Min mold height	mm	350	Injection pressure	bar	2.450	1.950	1.450	2.450	1.800	1.350
Min mold height	mm	350	Holding Pressure	bar	1.960	1.560	1.160	1.960	1.440	1.080
Max mold height	mm	830	Screw Torque	Nm	900	900	900	1.600	1.600	1.600
Max mold height	mm	830	Screw speed	rpm	250	250	250	250	250	250
Distance between tiebars (H x V)	mm	920 x 920	Plasticining rate (PS)	gm/s	46	71	89	56	76	100
Distance between tiebars (H x V)	mm	920 x 920	Nozzle contact pressure	ton	4	4	4	6	6	6
Ejector force	ton	9,0	Tolal heat capacity	kW	35	35	35	44	44	44
Ejector force	ton	9,0	General
Ejector stroke	mm	210	General
Ejector stroke	mm	210	Total connected power	kw	76			99
Platen size (H x V)	mm	1.285 x 1.285	Machine dimension (L x W x H)	m	8,5 x 2,2 x 2,4			9,1 x 2,2 x 2,4
Platen size (H x V)	mm	1.285 x 1.285	Machine weight	ton	24,5			26

※ Weight per shot is 95% of theoretical value. [GPPS]
※ Actual plasticization capacity includes may vary. depending on material used and molding conditions.
※ Main breaker capacity depending on the main power and extra 20A.
※ Machine dimensions and machine weight are approximate value.
※ Specifications are subject to change without notice duo to performance upgrade.
