Full Electric Injection Molding Machine 120 Ton

Full-Electric Injection Molding Machine- Walmo RE 120 Ton. Production Standards of the Future: High Speed, Maximum Precision.

Offered with the assurance of ELVER, the Real Series promises ultra-high productivity thanks to its high-speed processor and real-time “Fieldbus” system. Pushing the boundaries of motion precision, this series integrates all the requirements of the digitalized industry into a single platform.

Stability

Key Advantages

Exceptional Stability

With advanced motion control technology and precision servo systems, we reduce the margin of error in production to near-zero:

Precision: 0.01 mm injection resolution and a weight offset of less than 0.01 g.
Control: Swiss-made Loadcells and optimized pressure-cut-off algorithms.
Hardware: Reinforced mechanical structure combined with premium electrical and pneumatic components offers sustainable production quality.

Economic

Maximum Economic Efficiency

Radically reduce your operating costs with advanced intelligent servo drives and a low-loss mechanical structure:

Energy Savings: Power consumption drops as low as 0.3 kWh/kg thanks to oil-free and direct full-servo motor drives.
Material Savings: Provides over 6% savings in product weight compared to traditional hydraulic machines.

Production

Superior Production Speed

The system design, optimized for short cycle times, turns every second into profit:

Parallel Movements: Minimizes cycle time through simultaneous movement capabilities and ejector operation during mold opening.
Flexibility: Full compliance with Chinese and European (EUROMAP) mold standards, wide tie-bar spacing, and long ejector strokes save time during setup.

Long Life

Long Lifespan and Intelligent Protection

Intelligent security systems designed to protect your investment:

Mold Protection: Minimizes wear and the risk of mold damage through an intelligent mold protection system and closed-loop torque control.
Durability: Closed-loop trajectory movements that reduce mechanical losses and an ultra-long-life capacitive touchscreen.

Clean Room

Eco-Friendly and Clean Production (Clean Room Compatibility)

Completely eliminates hydraulic oil contamination thanks to its full servo-motor-driven structure:

Oil-Free Operation: Provides a pristine working environment using Japanese-origin ball screws and linear guides.
Professional Lubrication: Flawless cleanliness and performance with industry-standard professional Lube lubrication systems.

Innovation

The Hub of Innovation: ELVER R&D

We integrate ever-evolving information technologies into production processes. With our high R&D investments and rich technical reserves, we meet next-generation molding requirements with the most modern solutions.

“With the Real Series, you are not just buying a machine; you are investing in a future focused on efficiency and precision.”

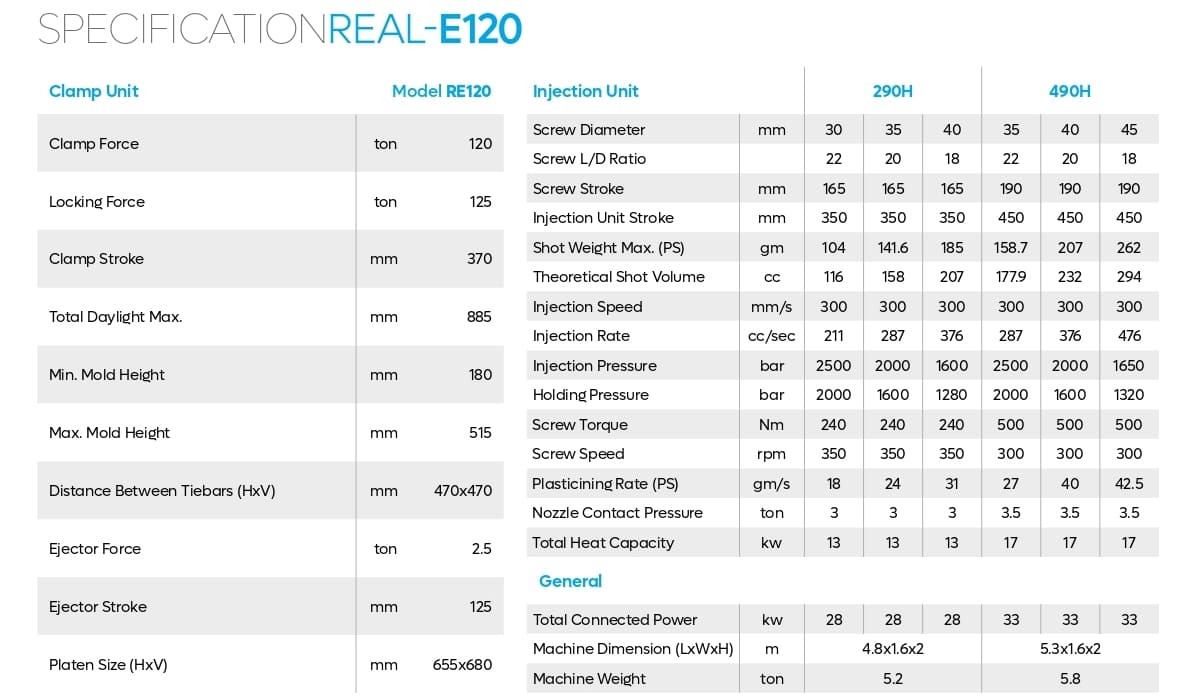

Technical Specifications

Technical Specifications: 120 Ton Electric Injection Molding Machine (RE 120)
											Clamp Unit	RE 120	Injection unit	290 H	490 H
											Clamp Unit	RE 120	Injection unit	290 H	490 H
Clamp force	ton	120	Screw diameter	mm	30	35	40	35	40	45
Clamp force	ton	120	Screw L/D ratio		22	20	18	22	20	18
Locking Force	ton	125	Screw stroke	mm	165	165	165	190	190	190
Locking Force	ton	125	Injection unit stroke	mm	350	350	350	450	450	450
Clamp stroke	mm	370	Shot weight Max. (PS)	gm	104	142	185	159	207	262
Clamp stroke	mm	370	Theoretical shot volume	cc	116	158	207	178	232	294
Total daylight max	mm	885	Injection speed	mm/s	300	300	300	300	300	300
Total daylight max	mm	885	Injection rate	cc/s	211	287	376	287	376	476
Min mold height	mm	180	Injection pressure	bar	2.500	2.000	1.600	2.500	2.000	1.650
Min mold height	mm	180	Holding Pressure	bar	2.000	1.600	1.280	2.000	1.600	1.320
Max mold height	mm	515	Screw Torque	Nm	240	240	240	500	500	500
Max mold height	mm	515	Screw speed	rpm	350	350	350	300	300	300
Distance between tiebars (H x V)	mm	470 x 470	Plasticining rate (PS)	gm/s	18	24	31	27	40	43
Distance between tiebars (H x V)	mm	470 x 470	Nozzle contact pressure	ton	3	3	3	4	4	4
Ejector force	ton	2,5	Tolal heat capacity	kW	13	13	13	17	17	17
Ejector force	ton	2,5	General
Ejector stroke	mm	125	General
Ejector stroke	mm	125	Total connected power	kw	28			33
Platen size (H x V)	mm	655 x 680	Machine dimension (L x W x H)	m	4,8 x 1,6 x 2			5,3 x 1,6 x 2
Platen size (H x V)	mm	655 x 680	Machine weight	ton	5,2			5,8

※ Weight per shot is 95% of theoretical value. [GPPS]
※ Actual plasticization capacity includes may vary. depending on material used and molding conditions.
※ Main breaker capacity depending on the main power and extra 20A.
※ Machine dimensions and machine weight are approximate value.
※ Specifications are subject to change without notice duo to performance upgrade.
