RC Series: Multi-Component All-Electric Injection Molding Machine with Rotary Table
High Precision, Dual-Color Technology, and Sustainable Production / WALMO RC 230Ton
Quality standards in today’s plastics industry are rising every day. Single-component products are no longer sufficient to meet the aesthetic and functional expectations of consumers. The WALMO RC Series is a high-tech solution designed to meet the requirements of complex color combinations, sandwich structures, and multi-layer products.
From automotive to packaging, medical devices to consumer electronics, it offers maximum efficiency and low-cost advantages in high-volume production processes requiring high precision.
Key Features
Innovative Rotary Table Technology
The moving platen structure, capable of 180° rotation, allows for the placement of two different molds, enabling dual-color and dual-material production.
Zero-Contact Rotation: The rotary table does not contact the platen during rotation; this minimizes wear and extends the machine’s lifespan.
Precise Positioning: The table position is flawlessly determined before mold closing, ensuring maximum mold safety.
Servo Control: With servo motor technology, table rotation speeds can be adjusted sharply and without vibration.
Superior Injection Performance
The RC Series is equipped with the “Real Series” high-dynamic injection unit for miniaturized parts and complex geometric shapes.
Extreme Speed: 800mm/s injection speed and 4.5G acceleration capacity.
Maximum Precision: With 0.01 mm injection precision and less than 0.01 g weight deviation, it is ideal for optical lenses and thin-walled parts.
Independent Dual Barrels: Thanks to two independent injection units, dual-color products are produced in a single cycle, shortening production time.
Robust Mechanical Structure and Ergonomics
New Clamping Design: More stable performance thanks to upgraded mechanical density and rigidity.
Euromap Standards: Fast mold clamping and easy maintenance with the ejector plate structure.
Linear Guides: Fast and smooth movement capability with the dual linear-guided injection unit.

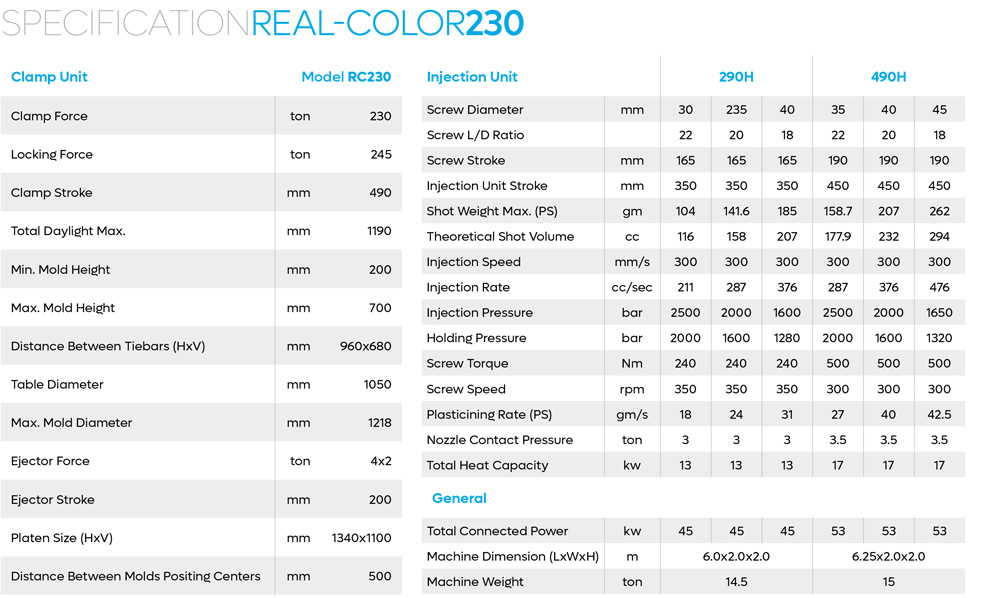

Technical Details
Technical Details: Rotary Table Specifications
All-Electric: Energy efficiency and clean production.
Customizable Indexing: Different options such as 120° and 90° in addition to the standard 180°.
Advanced Connections: Up to 4 (or more) cooling and hydraulic circuits; independent air, water, and oil connections.
Smart Cooling: Versions with integrated cooling systems specifically for the rotary table.
VICO Control System
VICO Control System: The Hub of Smart Manufacturing
The VICO system, which allows you to program the production process entirely according to your needs, transforms complexity into simplicity.
Visual Interface: 21.5-inch Full HD (1920×1080) industrial touchscreen.
Data Analysis: Real-time data collection and analysis with built-in SPC and SCADA function blocks.
Industry 4.0 Compatibility: Centralized control and data exchange over the local network.
Remote Support: Software updates, troubleshooting, and video technical support via the internet.
Why RC?
Why Choose the RC Series?
Speed: Dual injection structure that shortens cycle times.
Quality: Near-zero error margin with precise servo control.
Flexibility: Injection units that can be configured in different sizes.
Efficiency: Low energy consumption and a sustainable production model.
Experience high-speed, high-quality dual-color molding with the WALMO RC Series!
